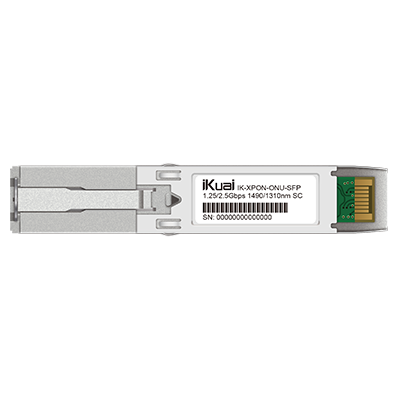

XPON ONU光模塊 IK-XPON-ONU-SFP

￥ 0.00

數量

加入收藏加入購物車

具體參數

產品型號：IK-XPON-ONU-SFP

協議標準：ITU-T G.984.3 /G.988

傳輸介質：單模光纖

傳輸距離：20km

傳輸速率：GPON：1.25Gbps（TX），2.5Gbps（RX） EPON：1.25Gbps（TX），1.25Gbps（RX）

端口類型：單纖SC

工作波長：TX：1310nm RX：1490nm

工作電壓：3.3V±0.17V

平均發射光功率：0.5-4dBm

接收靈敏度：-28dBm

DDM數字診斷：支持

殼體工作溫度：0~70℃

存儲溫度：-40~85℃
