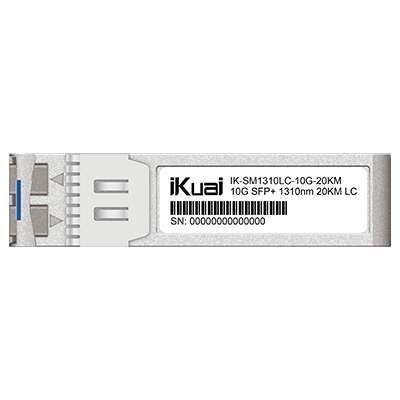

萬兆單模雙纖SFP+光模塊 IK-SM1310LC-10G-20KM

￥ 0.00

數量

加入收藏加入購物車

具體參數

產品型號：IK-SM1310LC-10G-20KM

協議標準：IEEE802.3ae

傳輸介質：單模光纖

傳輸距離：20km

傳輸速率：10Gbps

端口類型：雙纖LC

工作波長：1310nm

工作電壓：3.3V±0.3V

平均發射光功率：-6.0~-0.5dBm

接收靈敏度：-14.4dBm

DDM數字診斷：支持

殼體工作溫度：-10~70℃

存儲溫度：-40~85℃
